Commercial escalators, heavy-duty transit escalators, and moving walkways — sourced from qualified Chinese manufacturers and delivered with full civil works coordination.
30° / 35° · malls, airports, hotels

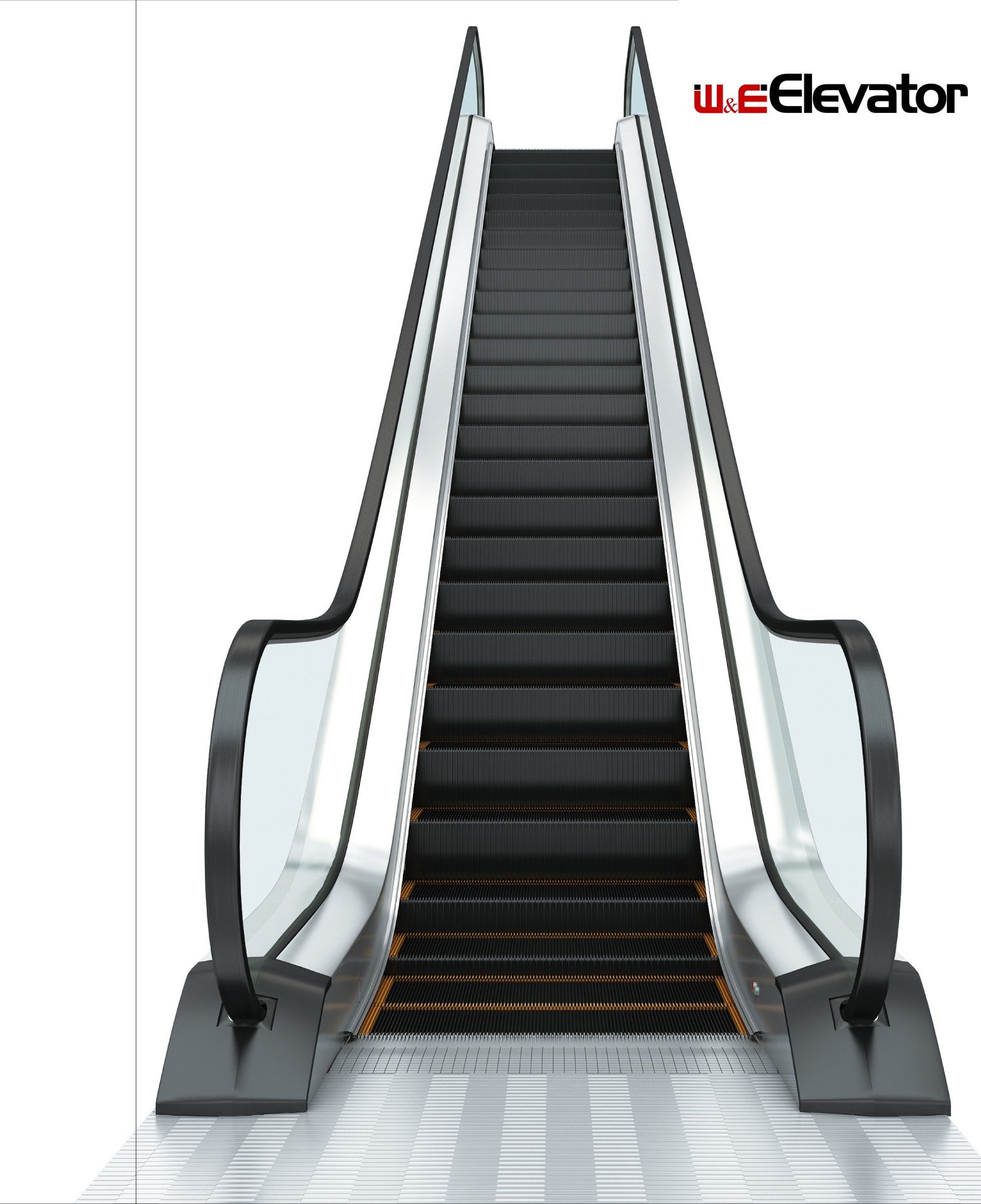

Space-saving design · modern buildings
Up to 12° incline · airports, transit hubs
Heavy-duty steel structure · precision drive
SPECIAL PRODUCT

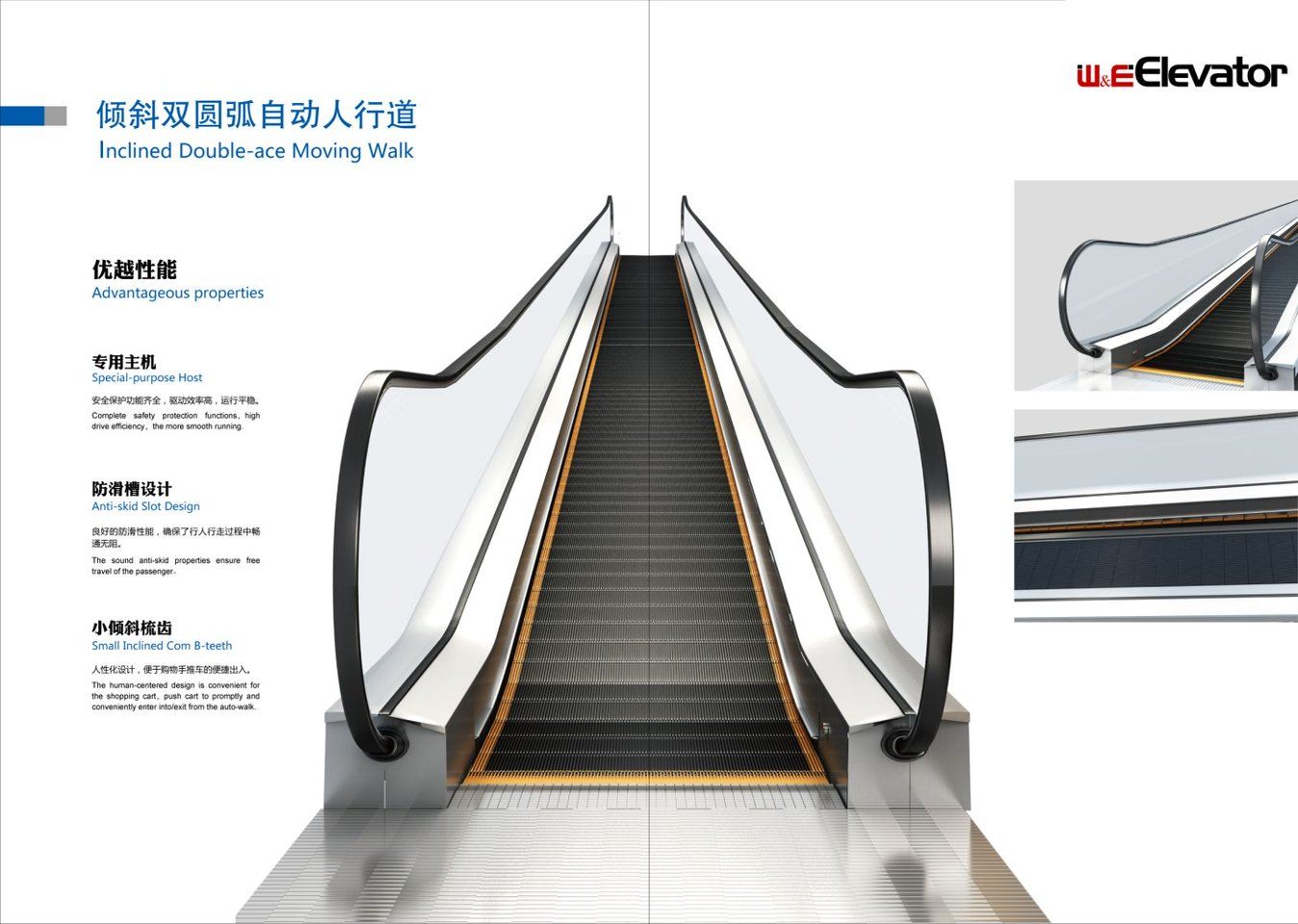

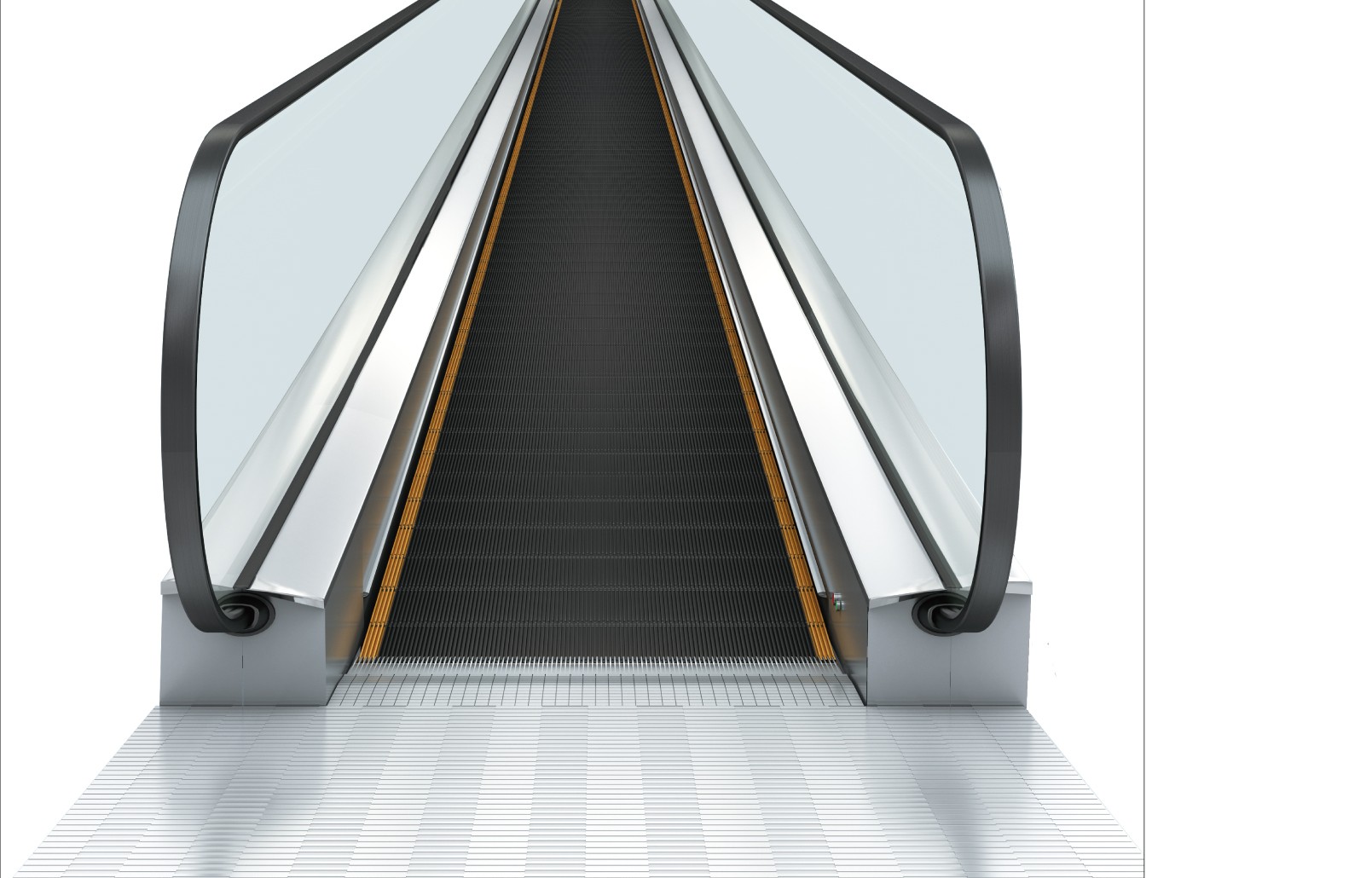

The double-arc handrail design of this inclined moving walk provides a smoother passenger experience at transition points. Anti-skid slot design, low-noise special-purpose host, and human-centered step geometry suit shopping carts and luggage.

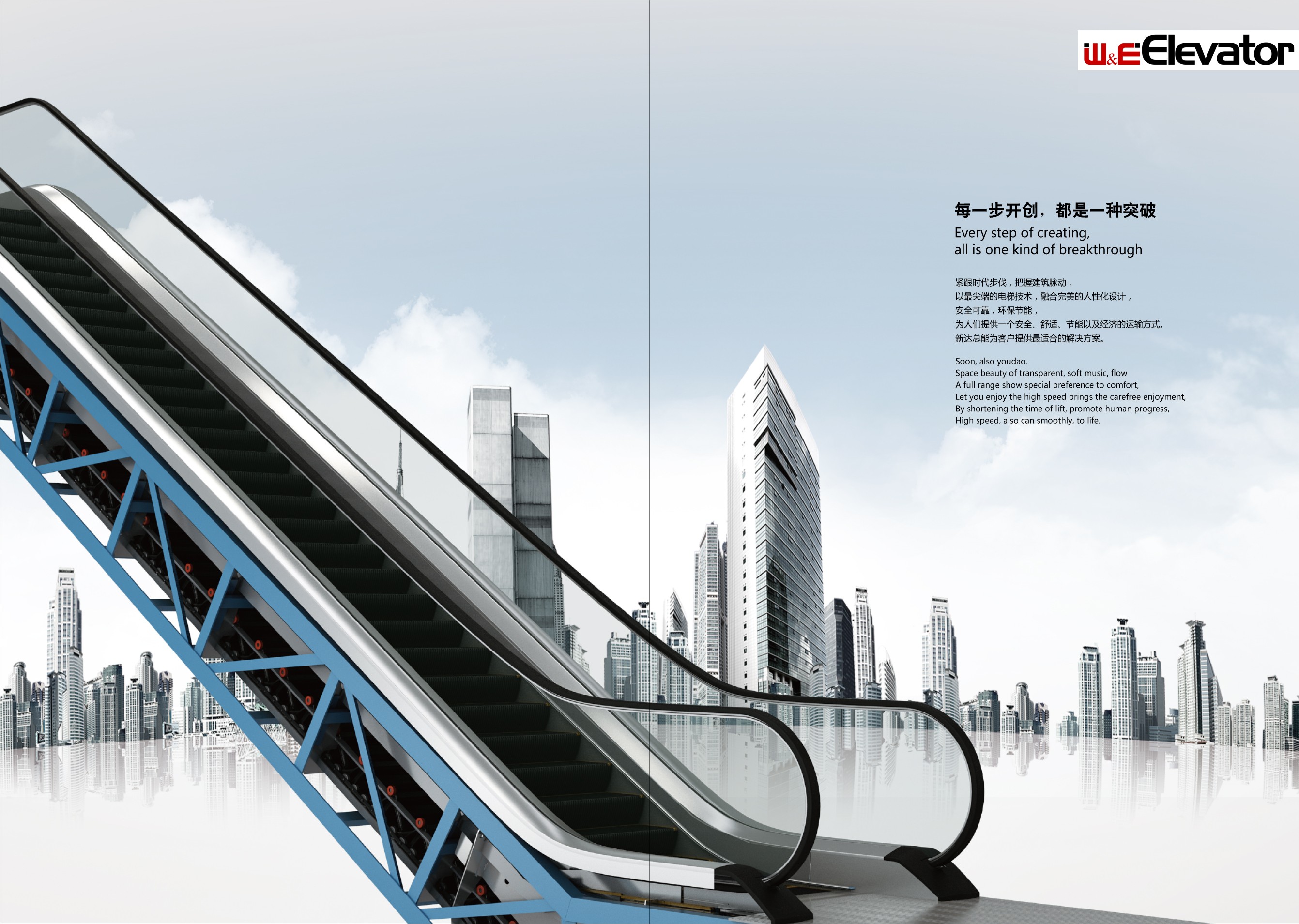

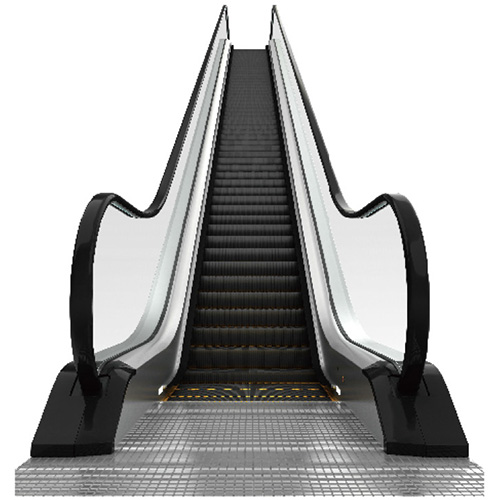

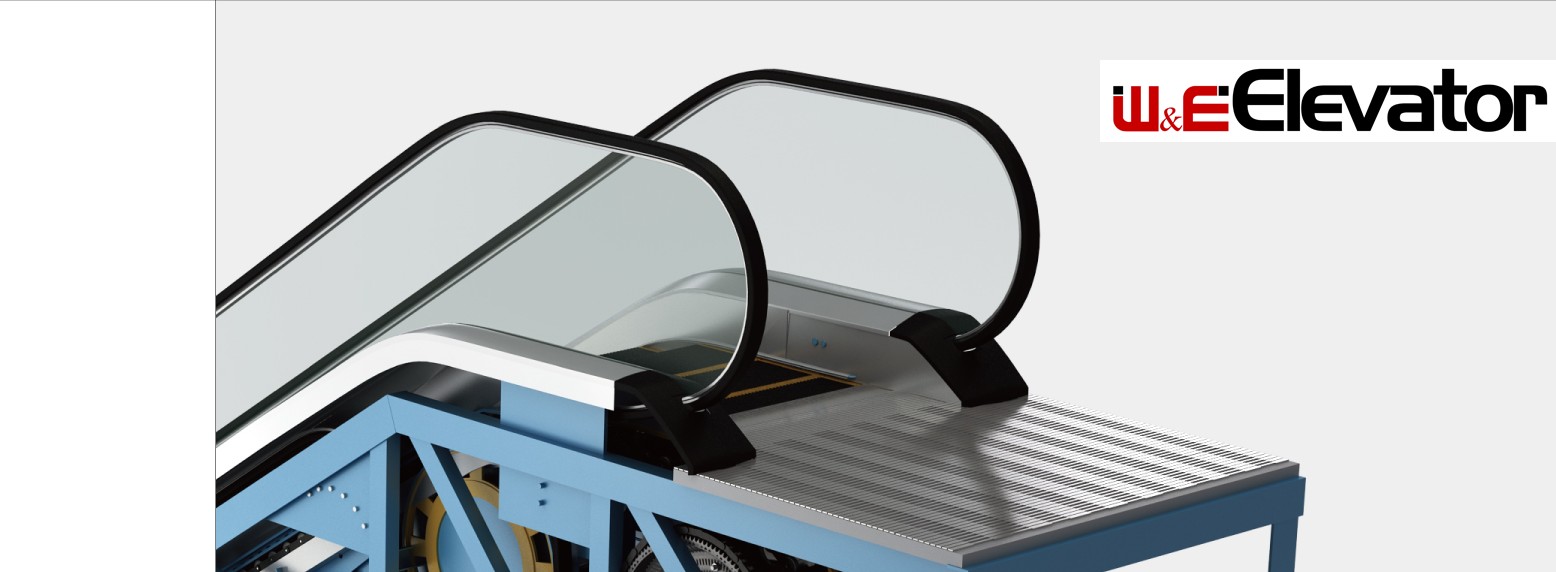

Standard indoor escalator for malls, airports, hotels, hospitals, and office buildings. EN115 / GB16899 compliant.
| Parameter | Specification |
|---|---|
| Inclination | 30° / 35° |
| Step width | 600 mm / 800 mm / 1000 mm |
| Speed | 0.5 m/s (standard) · 0.65 m/s (optional) |
| Rise height | Up to 15 m (custom for higher) |
| Drive system | VVVF energy-saving drive |
| Balustrade | Stainless steel / tempered glass |
| Step | Stainless steel with yellow demarcation line |
| Control | Microprocessor with fault self-diagnosis |
| Safety | Emergency stop, handrail speed monitor, step chain guard, comb plate safety |
| Compliance | EN 115 · GB 16899 · CE |
For high-traffic metro stations, rail hubs, and stadiums. Reinforced structure, redundant safety systems, designed for continuous operation.
| Parameter | Specification |
|---|---|
| Inclination | 27.3° / 30° |
| Step width | 800 mm / 1000 mm |
| Speed | 0.5 m/s · 0.65 m/s |
| Drive | Dual-motor option, twin-chain drive |
| Capacity | Designed for 20+ hr continuous duty |
| Outdoor version | Available with canopy / IP54 protection |
| Fire mode | Optional fire-rated operation per EN 115 |
| Compliance | EN 115 · GB 16899 · customized to local transit codes |

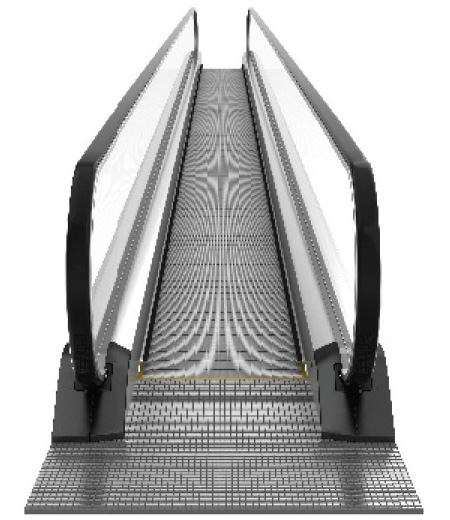

Indoor / outdoor moving walkways for airports, exhibition halls, and large public venues.
| Parameter | Specification |
|---|---|
| Inclination | 0° / 6° / 10° / 12° |
| Pallet width | 800 mm / 1000 mm |
| Speed | 0.5 m/s |
| Length | Up to 100 m (multi-section) |
| Balustrade | Stainless steel / tempered glass |
| Use case | Airports, shopping centers, transit concourses |
| Range | Options |
|---|---|
| Inclination | 0° / 6° / 10° / 12° / 27.3° / 30° / 35° |
| Step / pallet width | 600 / 800 / 1000 mm |
| Speed | 0.5 / 0.65 m/s |
| Max rise height | Up to 15 m+ (custom for higher) |
| Use case | Indoor · Outdoor · Transit · Heavy-duty public |
| Drive | VVVF · Standard / Energy-saving / Dual-motor |
| Balustrade finish | Stainless steel · Tempered glass · Black stainless |
| Compliance | EN 115 · GB 16899 · CE · customized per local code |
BEFORE YOU SPECIFY
Shopping malls, airports, metro & rail stations, hotels, hospitals, exhibition centers, and large public venues. Indoor or outdoor, transit-grade or commercial.
CE certificate to be uploaded — placeholder shown. Additional certifications available per project.
✅ Successfully delivered 20 units to Bogotá, Colombia in 2023 — full civil-works coordination and on-site commissioning support.
More case studies available on request.
We work with your civil drawings and tailor every spec to your project.
