Parts & Components

Elevator Parts

• Traction machines & motorsWE-5201
• Control cabinets & drive systemsWE-5202
• Door operator & landing-door systemsWE-5203

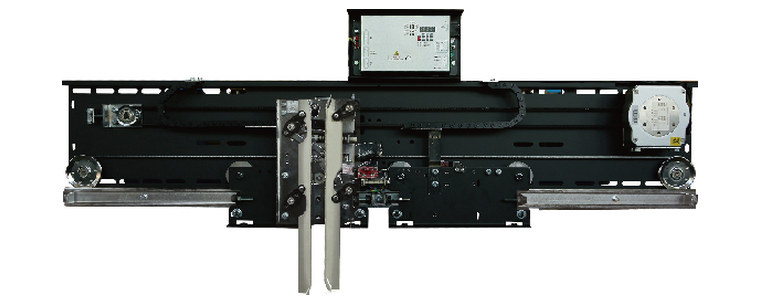

  WE-4101

  Center-Opening · Standard

  AC permanent-magnet operator for standard passenger lifts — the workhorse of the range.

  • Opening width (JJ)600–1200 mm
  • Car height (HH)2000–2600 mm

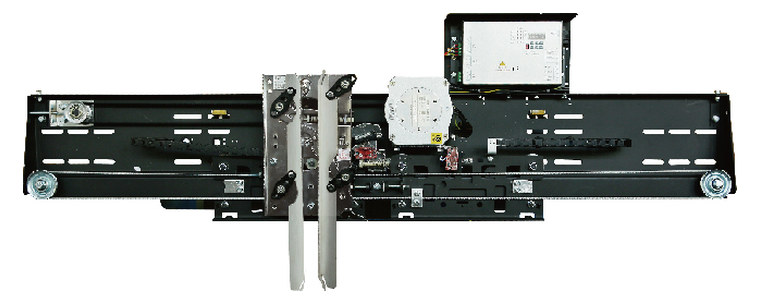

  WE-4102

  Center-Opening · Economy

  Cost-optimized version of the WE-4101 for high-volume and budget-sensitive projects.

  • Opening width (JJ)600–1200 mm
  • Car height (HH)2000–2600 mm

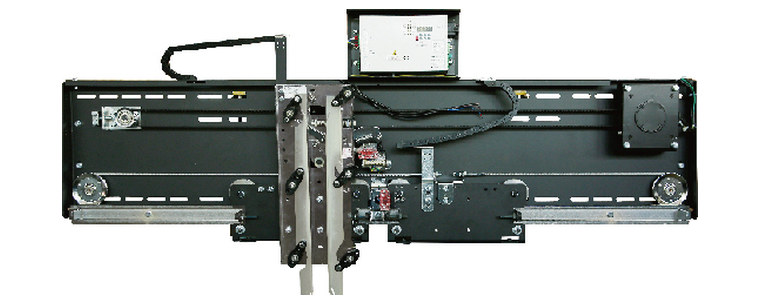

  WE-4103

  Center-Opening · Low Lintel

  Synchronous operator for installations with a shallow lintel — from just 15 mm clearance.

  • Opening width (JJ)600–1200 mm
  • Car height (HH)2000–2600 mm

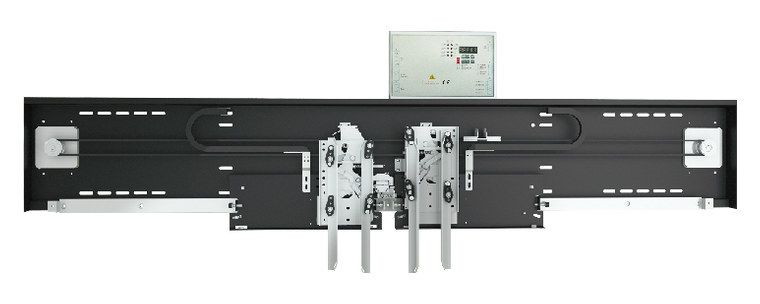

  WE-4201

  High-Speed Lifts (above 4 m/s)

  Reinforced operator for high-speed elevators, where door timing and reliability are critical.

  • Opening width (JJ)800–1400 mm
  • Car height (HH)2000–2600 mm

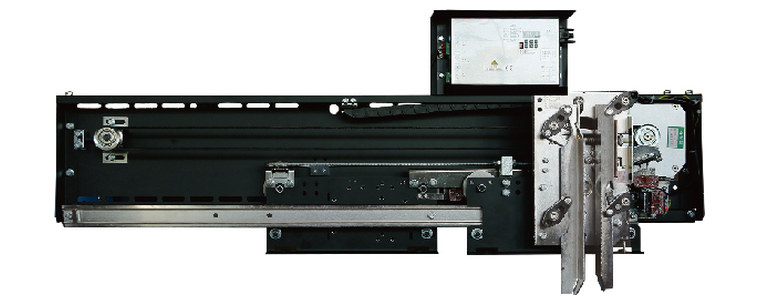

  WE-4301

  Side-Opening · Bi-Parting

  Two-panel side-opening operator for narrow shafts, existing buildings and retrofit work.

  • Opening width (JJ)Opening width on request
  • Car height (HH)2000–2600 mm

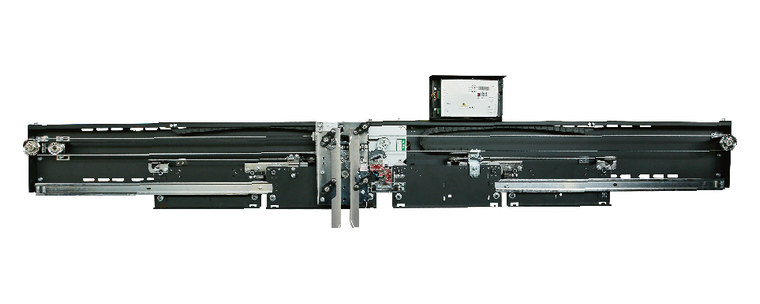

  WE-4401

  Center-Opening · 4-Panel

  Four-panel center-opening operator for wide entrances, high traffic and freight duty.

  • Opening width (JJ)1200–3000 mm
  • Car height (HH)2000–3100 mm

  Technical Highlights

  • Permanent-magnet synchronous motor — compact, efficient, low heat
  • 32-bit DSP vector closed-loop control; encoder resolution 4096
  • Integrated car-door lock with synchronous door vane — no extra landing-door roller
  • Mobile-app commissioning; optional automatic warning function
  • Smooth, low-noise operation — ≤ 55 dBA
  • CE certified; complies with GB 7588 (incl. Amendment No. 1)

  Typical Specifications

  Opening width (JJ)	600–1200 mm · 1200–3000 mm (4-panel)
  Car height (HH)	2000–2600 mm · 2000–3100 mm (4-panel)
  Input power	AC 220 V ±15% · 50/60 Hz
  Inverter current	2.5 A rated · 5.0 A max
  Motor	43 / 94 W · 180 rpm · 2.3 / 5.0 N·m
  Encoder	12-bit absolute · SSI interface
  Noise level	≤ 55 dBA
  Standard & marking	GB 7588 (incl. Amd. 1) · CE

  Models & datasheets: Full technical datasheets are available on request. Share your opening width, car height and project standard and we will match the right operator.

  Landing door devices

  Supplied together with the operators, so the complete door system comes from one source — including fire-rated versions where the shaft or lobby requires it.

  • WE-4501Centre-opening landing door device
  • WE-4502Side-opening four-panel landing door device
  • WE-4503Fire-rated landing door device · E120 (GB 27903-2011, BS 476)
  • WE-4504Heat-insulated fire door · EI90 (GB 27903-2011)
  • WE-4505Fire-rated series for CIS projects · GOST 30247.3-2002

  Durability: Door locks are life-tested to 3,000,000 cycles; spring-return and panel-unlocking versions are available.
• Guide rails, brackets & safety gearWE-5204
• Cables, compensation & suspensionWE-5205
• Car & landing fixtures, COP / HOPWE-5206

  Fixtures & controls

  Push buttons, COP, HOP & switches

  Every car and landing station we supply — buttons, car and hall operating panels, position indicators, displays and switches, numbered in their own WE-47 series.

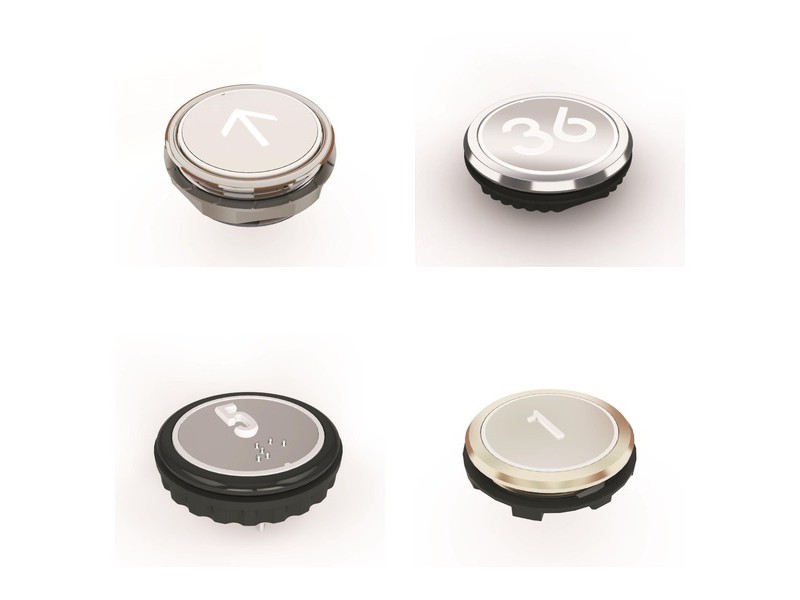

  WE-4701

  Push button

  Round and square buttons with stainless-steel or brass bezel — illuminated, engraved or Braille legends on request.



  WE-4702

  COP · Car operating panel

  In-car button station with position display, alarm and intercom; the panel layout is matched to the car interior.



  WE-4703

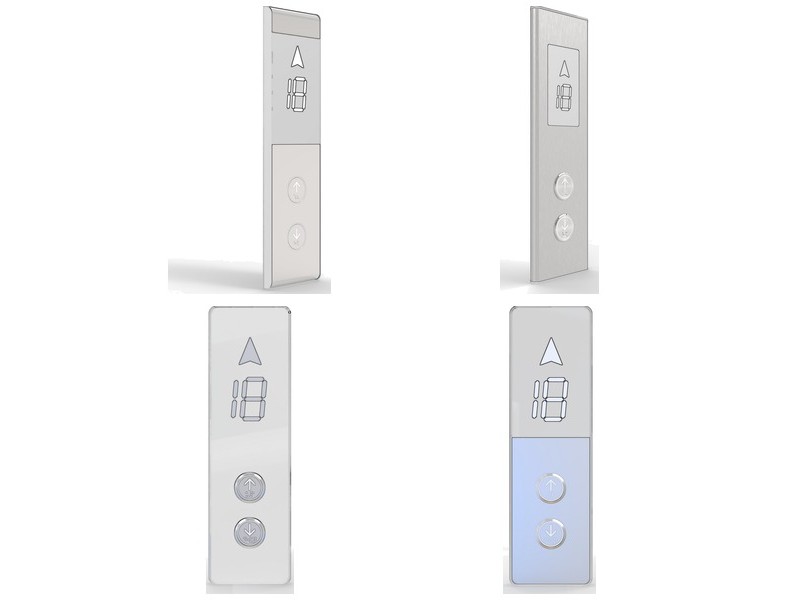

  HOP · Hall operating panel

  Landing call station with up and down buttons and an optional hall position display, in stainless steel or hairline finishes.



  WE-4704

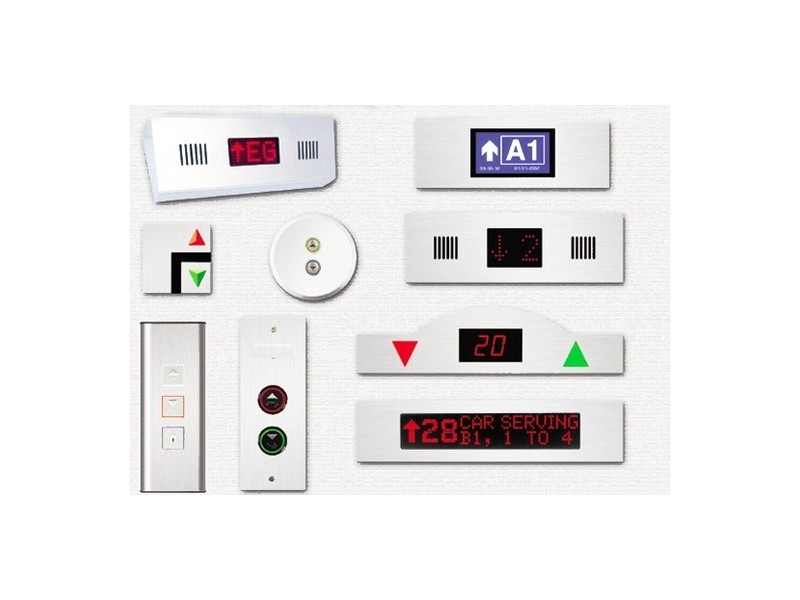

  HPI · Hall position indicator

  Position indicators in dot-matrix, LCD or seven-segment versions, with arrival gong options.



  WE-4705

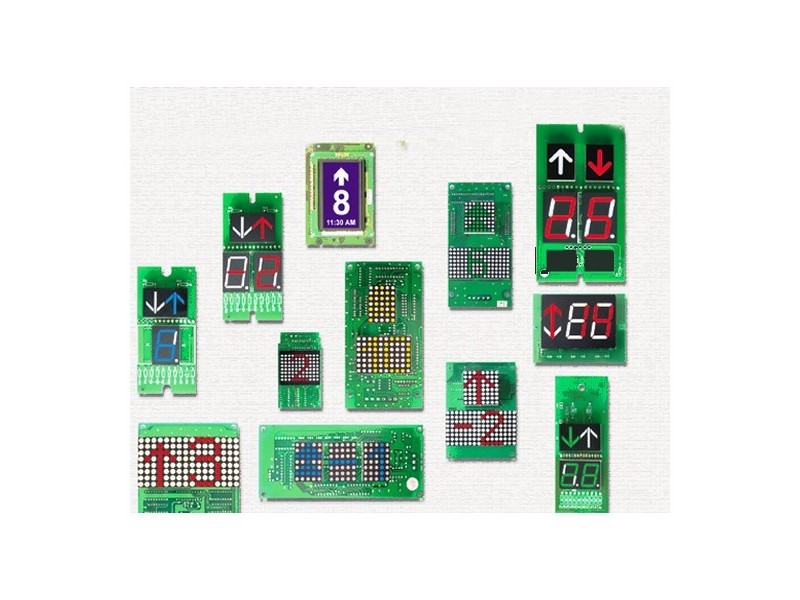

  Display board

  Display and control PCBs for car and landing stations — seven-segment, dot-matrix and LCD types.

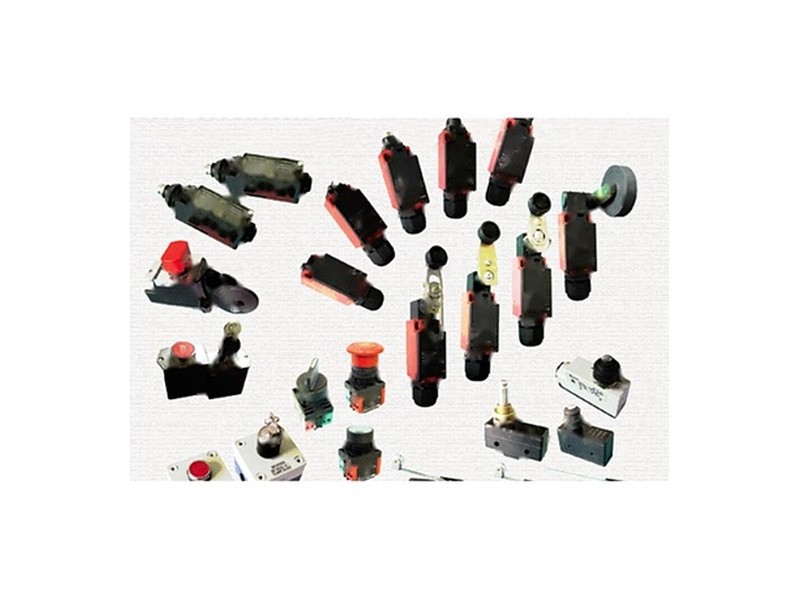

  WE-4706

  Switch

  Limit, safety and micro switches for door, governor and pit circuits.

  Options: Button material, engraving language and display type are specified per project. Send your car-panel layout and we will match the fixtures and quote them with the car order.
